Fully continuous tyre pyrolysis plant
Doing company began to manufacture waste tyre pyrolysis plant since 1993. We mastered mature pyrolysis technology on manufacturing batch type pyrolysis plant for 20 years. With more than ten years of experience and efforts,Doing produced fully continuous tyre pyrolysis plant .The fully continuous tyre pyrolysis plant is equipped with automatic feeding and discharging system, which can realize feeding materials on one side and discharging the slag continuously from the other side. It not only can dispose 10-100tons waste tyres per day but also can work continuously for 24 hours without a stop.
3 D picture of fully waste tyre pyrolysis plant

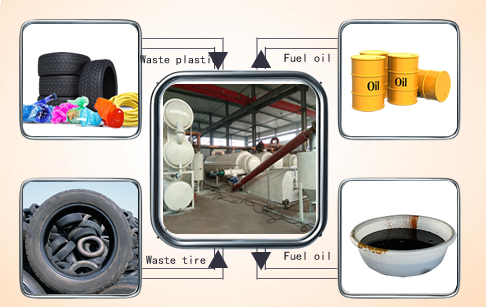

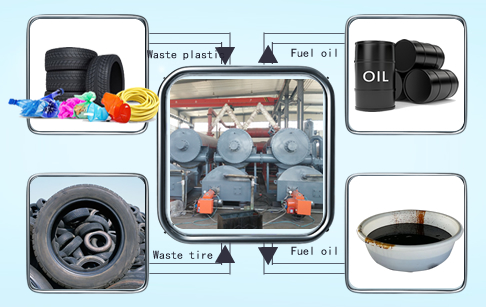

Fully continuous tyre pyrolysis plant raw material
Fully continuous tyre pyrolysis plant raw material
1.Waste tire/tyre
2.Waste plastic
3.Waste rubber

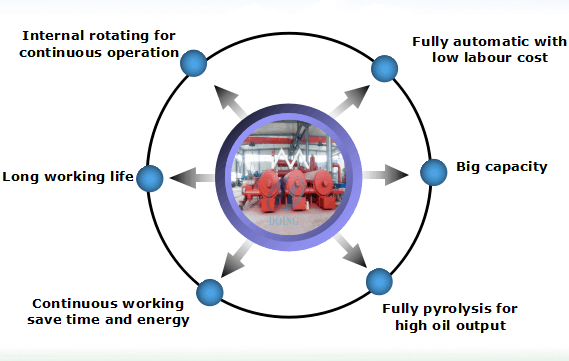

Fully continuous tyre pyrolysis plant advantage
Fully continuous tyre pyrolysis plant advantage
2. This process if environmentally friendly: fully continuous tyre pyrolysis plant not merely recycles waste plastic, that any high environmental pollutant but also turn the waste to grease the industry marketable product.
3. Features high degree of automation: the complete process starting form feeding the waste tyre in to the system to discharging the carbon black is very controlled by PLC.
- Features:
- Technical Data:
- Application:
Fully continuous waste tyre pyrolysis plant technical data
| No. | Item | Specifications | ||||||
| 1 | Model | DY-C-10 | DY-C-20 | DY-C-30 | DY-C-50 | DY-C-60 | DY-C-80 | DY-C-100 |
| 2 | Cpacity | 10T/D | 20T/D | 30T/D | 50T/D | 60T/D | 80T/D | 100T/D |
| 3 | Power | 35Kw | 50Kw | 65Kw | 80Kw | 90Kw | 105Kw | 120Kw |
| 4 | Working type | Continuous | ||||||
| 5 | Reactor deisgn | Mutiple reactors (The quantity and size depends on the raw material condition) | ||||||
| 6 | Rotating | Internal rotating | ||||||
| 7 | Cooling system | Recycled waster cooling | ||||||
| 8 | Reactor material | Q245R/Q345R boiler plate | ||||||
| 9 | Heating method | Indireact hot air heating | ||||||
| 10 | Heating fuel | Fuel oil/gas | ||||||
| 11 | Feedstock | Waste tire/plastic/rubber | ||||||
| 12 | Output | Fuel oil, carbon black | ||||||
- Features:
- Technical Data:
- Application:
Fully continuous tyre pyrolysis plant final product application

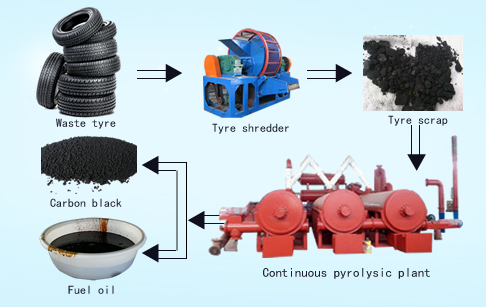

We using the fully continuous tyre pyrolysis plant to dispose waste tyres, the pre-treated tires will first be conveyed to the moving horizontal pyrolysis reactor through the automatic feeder. In the reactor, the tyres will take a series of pyrolysis reactions under the action of catalyst. When the whole pyrolysis process ends, we can get pyrolysis oil, carbon black and steel wire. They all have a wide range of applications. For example, the pyrolysis oil can be widely used as fuel oil in industries such as steel and iron and boiler factories, ceramics, power or chemical industries or hotels, restaurants etc. or used for generators to get electricity. The carbon black can be used for making construction bricks with clay, or used as fuel. The steel wire can be sold directly or recycled to produce new steel products.
Fuel Oil (45% to 52%)
The main application of oil products produced by our fully continuous waste tyre pyrolysis plant is the fuel oil that is wide used for industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic fatory.
Carbon Black (30%)

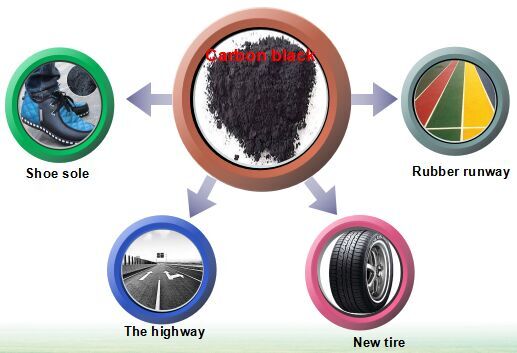

Carbon black application
The second product of fully continuous waste tyre pyrolysis plant i is carbon black. The quantity of carbon black is about 30% to 35% according to tyre quality. Carbon black can application to electric cable jacketing,black nylon bag,rubber additive
Exhaust gas (About 10%)
We get about 10% pyrolytic gases during pyrolysis process. The main component of this gases are methane (CH4), so we can not condense and store this gases. We use this gases to heat the reactor and we can use exceed gases for other heating application.
We using the fully continuous tyre pyrolysis plant to dispose waste tyres, the pre-treated tires will first be conveyed to the moving horizontal pyrolysis reactor through the automatic feeder. In the reactor, the tyres will take a series of pyrolysis reactions under the action of catalyst. When the whole pyrolysis process ends, we can get pyrolysis oil, carbon black and steel wire. They all have a wide range of applications. For example, the pyrolysis oil can be widely used as fuel oil in industries such as steel and iron and boiler factories, ceramics, power or chemical industries or hotels, restaurants etc. or used for generators to get electricity. The carbon black can be used for making construction bricks with clay, or used as fuel. The steel wire can be sold directly or recycled to produce new steel products.

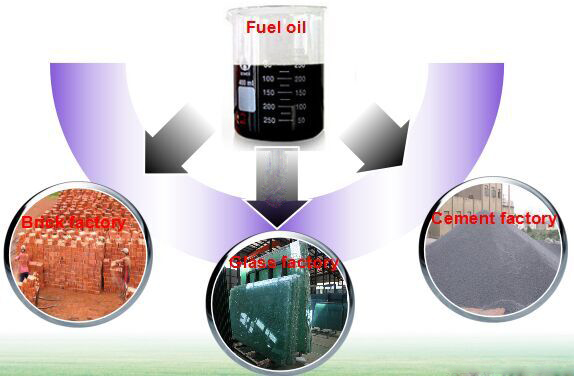

Fuel oil application
Fuel Oil (45% to 52%)
The main application of oil products produced by our fully continuous waste tyre pyrolysis plant is the fuel oil that is wide used for industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic fatory.
Carbon Black (30%)
Carbon black application
Exhaust gas (About 10%)
We get about 10% pyrolytic gases during pyrolysis process. The main component of this gases are methane (CH4), so we can not condense and store this gases. We use this gases to heat the reactor and we can use exceed gases for other heating application.
