Why we developed the continuous pyrolysis plant?

The continuous pyrolysis plant can handle many kinds of waste,such as waste
plastic, waste tyres, waste rubber, oil sludge and so on.

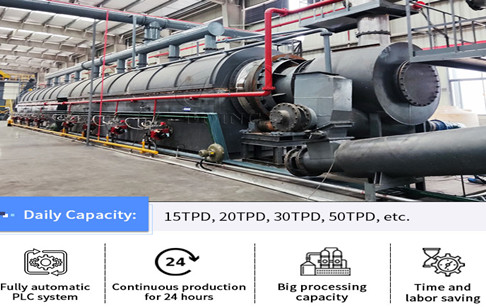

Our conitnuous pyrolysis plant is controlled by PLC system with automatic
feeding and discharge system, which only need 1-2 worker for operating the PLC
or computer is ok,so it is very easy to operate it and our customers can save much
cost of time and labor.

Our continuous pyrolysis plant adapts to multiple reactor design which can make
fully pyrolysis of waste tire/plastics, thus to get high oil output.

Also due to continuous feeding and discharge system, and unique mutiple reactor
design, our automatic continuous pyrolysis plant can process at least 10 tons
waste tires per day, up to 100T/D.

From what has been discussed above,That’s why we developed the continuous
pyrolysis plant.

Technical support

What’s raw material of continuous pyrolysis plant

pyrolysis process
  Oil yield of different raw material
PE 95% Submarine cable 75%
PP 90% Rubber cable 35%
PS 90% Sole 30%
ABS 40% Big tires 45%-50%
Plastic bag 50% Small tires 35%-40%
House garbage 35%-50% PVC Not suitable
Plastic cable 80% PET Not suitable
Leftovers of paper Wet 15-20%,dry 60%

Through continuous improvement and constant technology upgrading, we have designed continuous waste tyre/plastic/rubber

pyrolysis plant which can convert tyre/plastic/rubber into useful resources more efficiently.

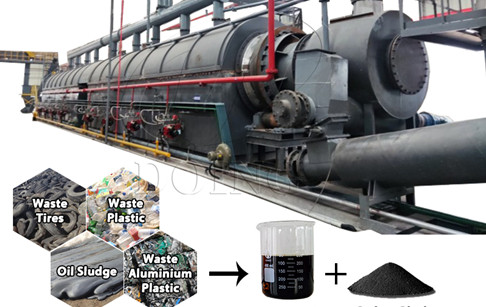

Continuous pyrolysis can process raw material :waste tire/tyre,waste plastic and waste rubber

Technical support

How does continuous pyrolysis plant works?

waste tyre pyrolysis plant waste plastic pyrolysis plant

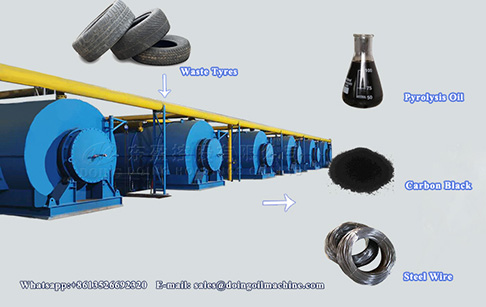

Treatment processes of waste tires

  1. Collect waste tires: All kinds of waste tires are available, from
    small car tires to big OTR tires.
  2. Remove steel wire: Use a steel wire pulling machine to pull out
    the steel wire from waste tires.
  3. Shred tires: Use a specialized tire shredder to process big whole
    tires into 3-5cm small pieces for easy feeding.
  4. Continuous pyrolysis process: Shredded tyres go into the
    continuous waste tyre pyrolysis plant , will firstly go through
    a mutiple pyrolysis reactor system to be pyrolyzed into oil gas.
    And oil gas will be cooling down to liquid oil through the cooling
    system. The residues (carbon black) will be pushed
    by continuous feeding tires to the carbon black dischrge system
    for discharge.

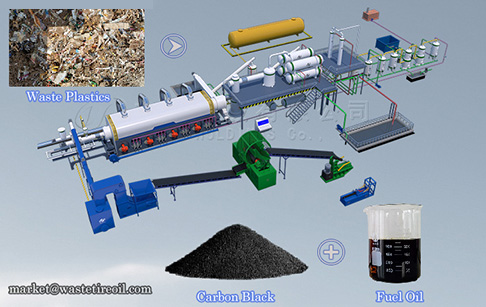

Waste plastics processing

  1. All available plastic can be shredded by plastics crusher, and then
    feed plastic granules directly into plastic continuous pyrolysis plant
    through the feeding door.
  2. Our feeding door is with screw inside, so it can help you easily
    convey the plastic granules into our reactor No 1, then all the plastic
    can be decomposed under the high temperature through reactor
    No 1 to reactor No 2,then to reactor No 3...Until all the
    plastic fully pyrolysed, then all the carbon black powder will
    be discharged automatically to the carbon black tank.
  3. All the available oil gas will be cooled by circulation water and
    the extra pyrolysis gas will be recycled through pipes into the
    burners for heating again.In our continuous waste plastic pyrolysis
    plant,the water circulation system and extra pyrolysis gas
    recycling system will help you save much fuel and water resource,
    in this way, our plastic continuous pyrolysis plant can
    minimize your cost and maximize your profits.

Technical support

What’s raw material of continuous pyrolysis plant?

continuous pyrolysis plant
  ROI analysis of 10T continuous waste plastic pyrolysis plant
Waste plastic according to market
Heating fuel 300kg fuel oil or 100m3 gas for start up
Electricity 25Kw/h
Water Water is for recycle use, no consumption
Labour 1 workers per shift
Return / day
Fuel oil 7000-7500 liters
Carbon black 2-2.5 tons
Tail gas For recycle use

Continuous waste plastic pyrolysis plant is an upcoming industry that will fuel tomorrow’s growth and protect environment by cleaning dumping yard off waste plastic.The business of continuous waste plastic pyrolysis plant can help customer bring huge profit for you.
