The usage of products from waste plastic pyrolysis plant

Continuous Tyre Pyrolysis plant

plastic pyrolysis is a thermo decomposition of plastic polymer, since waste plastic are long chain polymers containing more than 50,000 carbon atoms attached to each other in a cross linked or straight chain.

Chat Online Leave A Message
 Waste plastic pyrolysis plant
Waste plastic pyrolysis plant

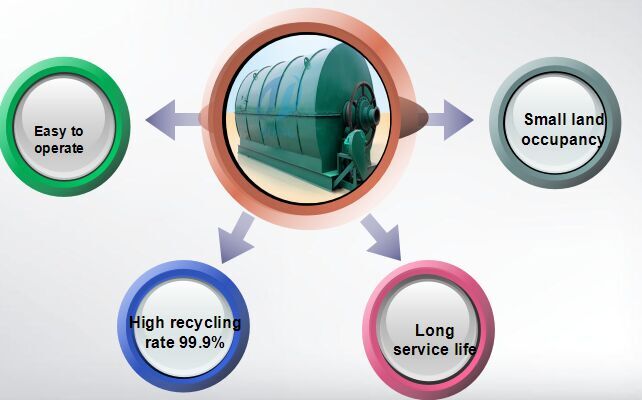

Waste plastic pyrolysis plant feature


Plastic pyrolysis is a thermo decomposition of plastic polymer, since waste plastic are long chain polymers containing more than 50,000 carbon atoms attached to each other in a cross linked or straight chain.

 Waste plastic pyrolysis plant technical data




Technical parameter of waste plastic pyrolysis plant
No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic Waste plastic Waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about waste plastic pyrolysis plant
No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m

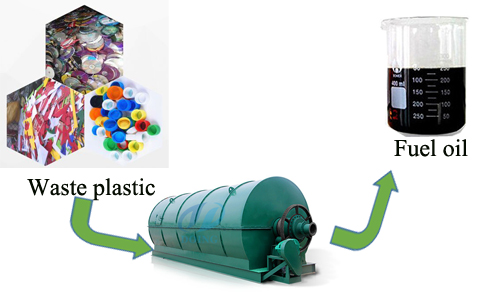

 Waste plastic pyrolysis plant final product and application

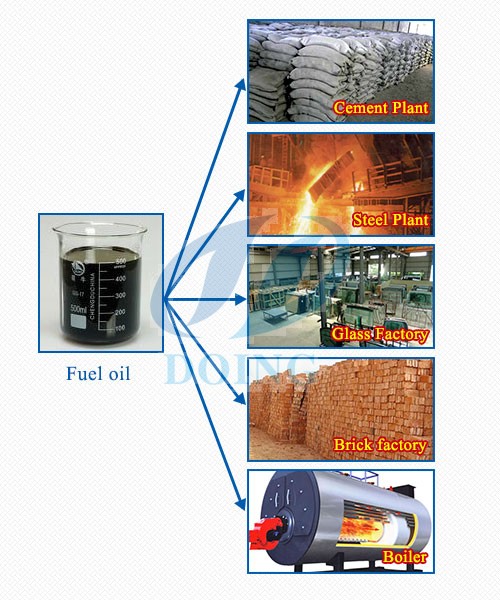

After processed by waste plastic pyrolysis plant, you can get fuel oil and carbon black. The following are the function of products from waste plastic pyrolysis plant.

waste plastic pyrolysis plant

waste plastic pyrolysis plant
