Recycling Machines

1. We are a leader of manufacturer which has specialized in producing waste plastic disposal machine for many years. 2. Oil output rate is 45%-55% for waste tyres, plastic is about 85%-90% for PP, PE, PS, and ABS. 3. High quality machine to solve white plastic pollutions 4. We continuously updated technology with domestic pioneer technology. 5. Our plants have been exported to European countries, such as: Albania, Italy，Romania，Poland，Iran, And so on. 6. The near airport is Zhengzhou International Airport (CGO).

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2

Chat Online Leave A Message

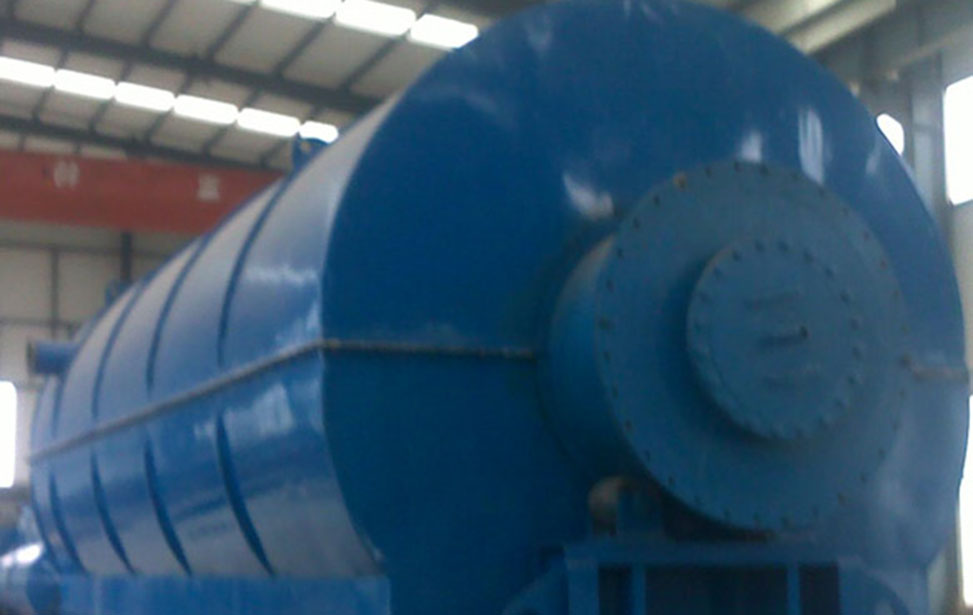

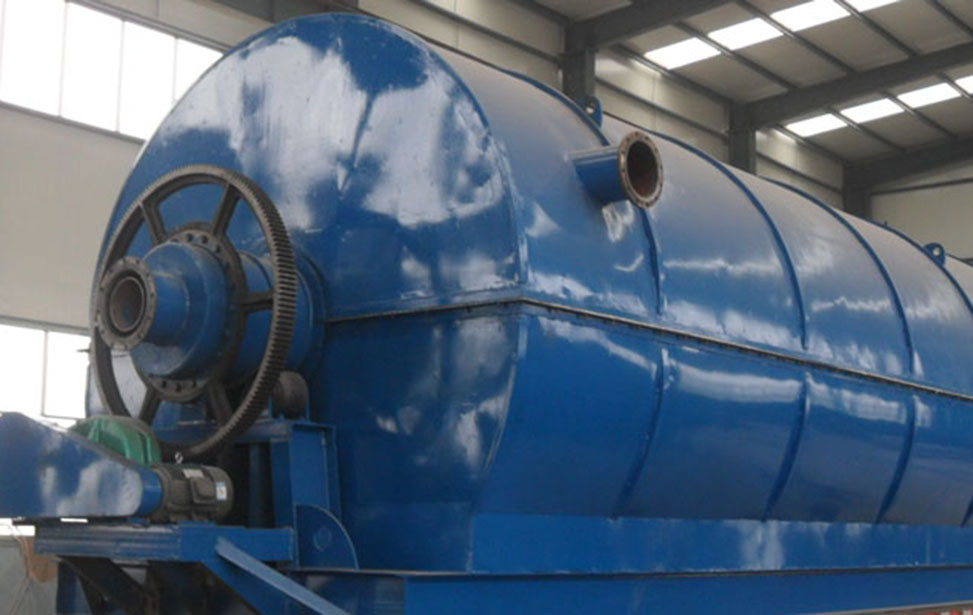

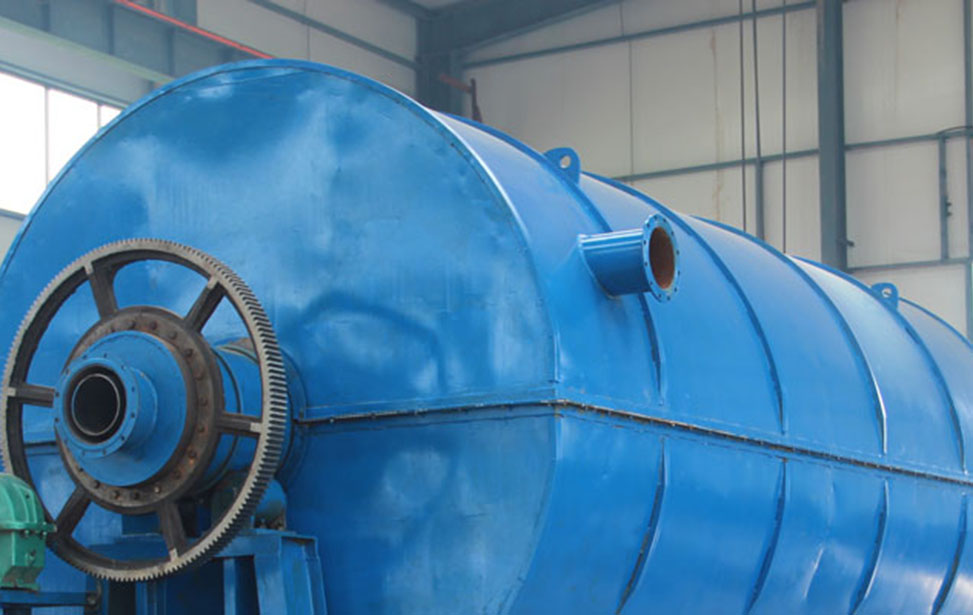

Advanced design waste plastic disposal machine

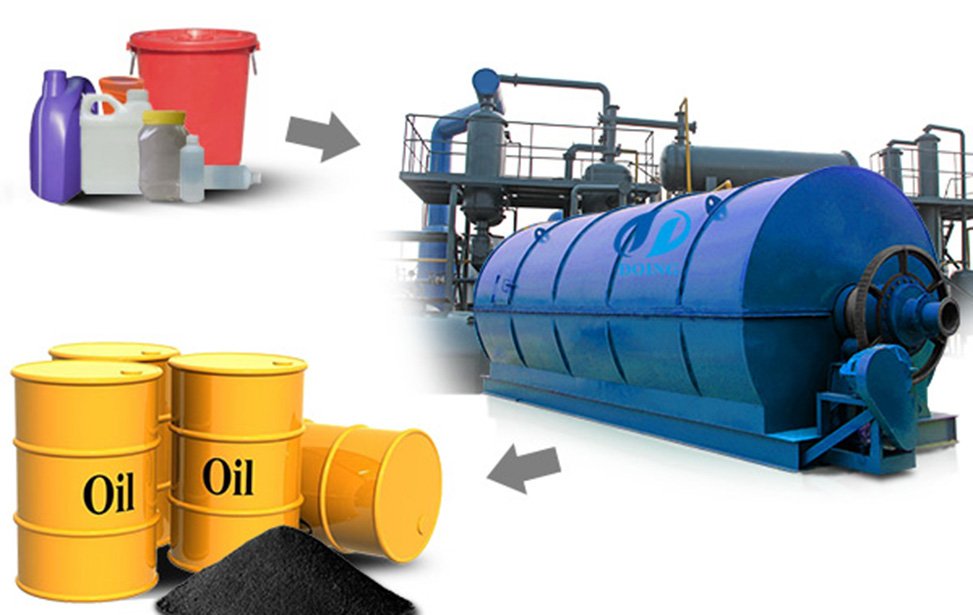

The pyrolysis process and principle of waste plastic disposal machine:
Firstly, put the raw material into furnace
Secondly, burn the fuel material (coal, or wood, or natural gas, or oil) in the combustion system.
After finishing oil producing, the temperature of reactor will come down, at the same time; carbon black will be discharged automatically.
Lastly, when the temperature falls to 100 degree Celsius, worker could open the door of the reactor to discharge the steel wire, and then can start another batch.
Approx oil yield of different raw materials:

PE	95%
PP	90%
PS	90%
ABS	40%
Leftovers of paper	Wet 15-20%, dry 60%
House garbage	35-50%
Plastic cable	80%
Plastic bag	50%
Submarine cable	75%
Rubber cable	35%
Sole	30%
Big tires	45-50%
Small tires	35-40%
PVC	Not suitable
PET	Not suitable

Technical Data

Technical parameter of advanced design waste plastic disposal machine
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste typlastic	Waste plastic	Waste plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about advanced design waste plastic disposal machine
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Application

Oil usage from waste plastic disposal machine

Application scope of Advanced design waste plastic disposal machine
The universal and multifunction product is our newest design, which fit for waste tires and waste plastic. The material inside reactor will be vaporization cracking.
