DOING automatic convert waste plastic to oil machine: 1. Instead of landfill or burning, DOING adopts advanced green technology to recycle waste plastics. 2. DOING pyrolysis machine can convert different waste plastic to fuel oil which collect by recycling centers . 3. Oil rate: waste plastic is about 85%-90% for (PP, PE, PS, and ABS).

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2

Chat Online Leave A Message

Convert waste plastic to oil machine

DOING automatic convert waste plastic to oil machine with high efficient and environmentally friendly. No pollution to air, water and earth.

The two keys of convert waste plastic to oil machine are reactor and cooling system.

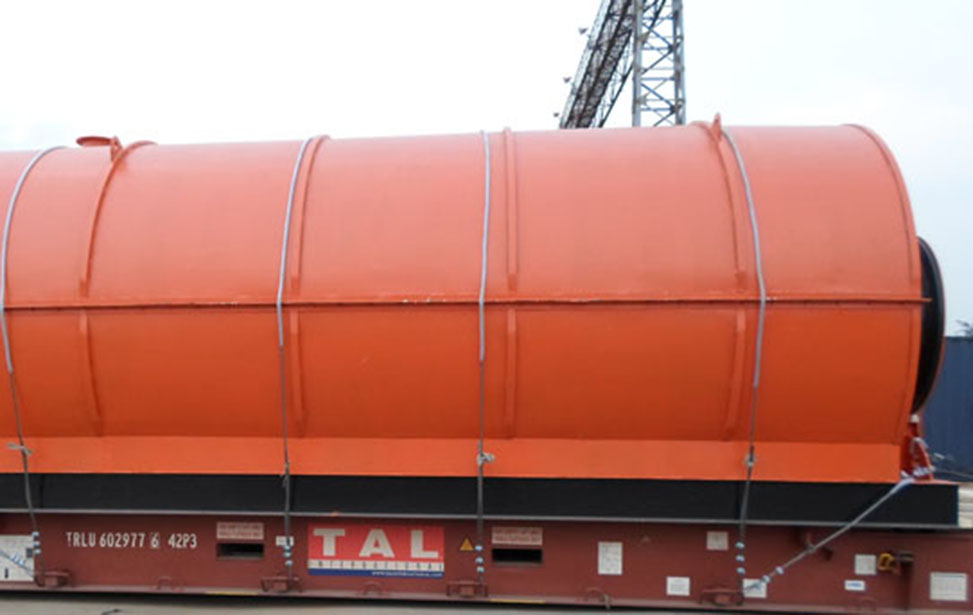

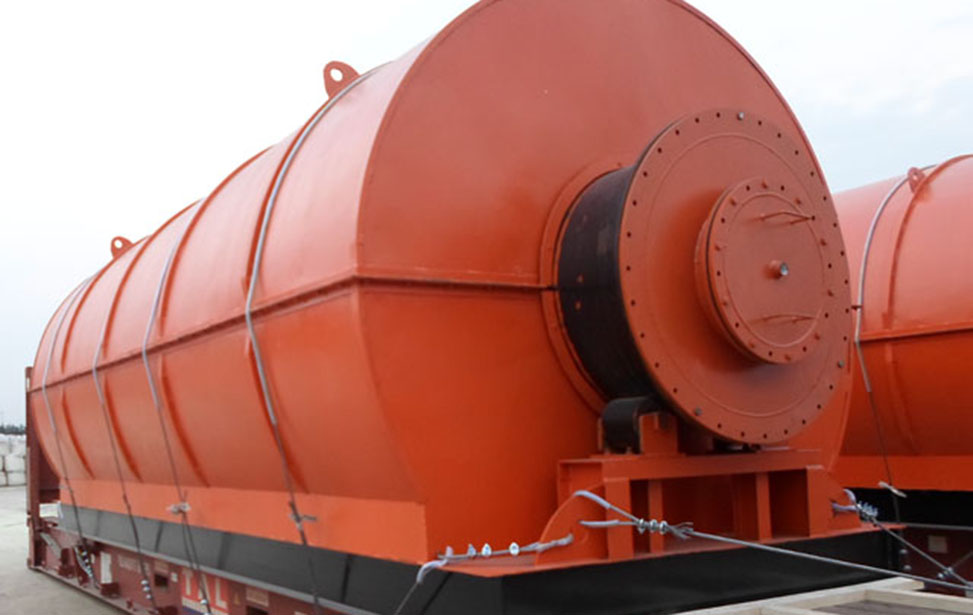

Reactor directly decides the machine's safety and service life. It is made by welded steel plate. So the quality of welding will have a direct impact on safety and service life. Therefore, we use automatic welding machine, X-rays detection and heating treatment which will not only guarantee the quality of welding but also greatly improve working efficiency.

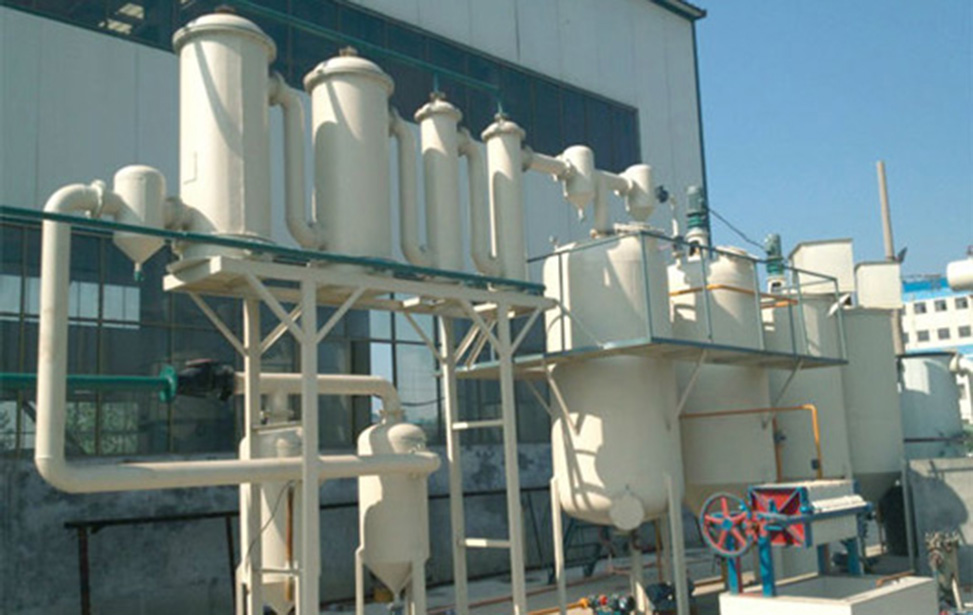

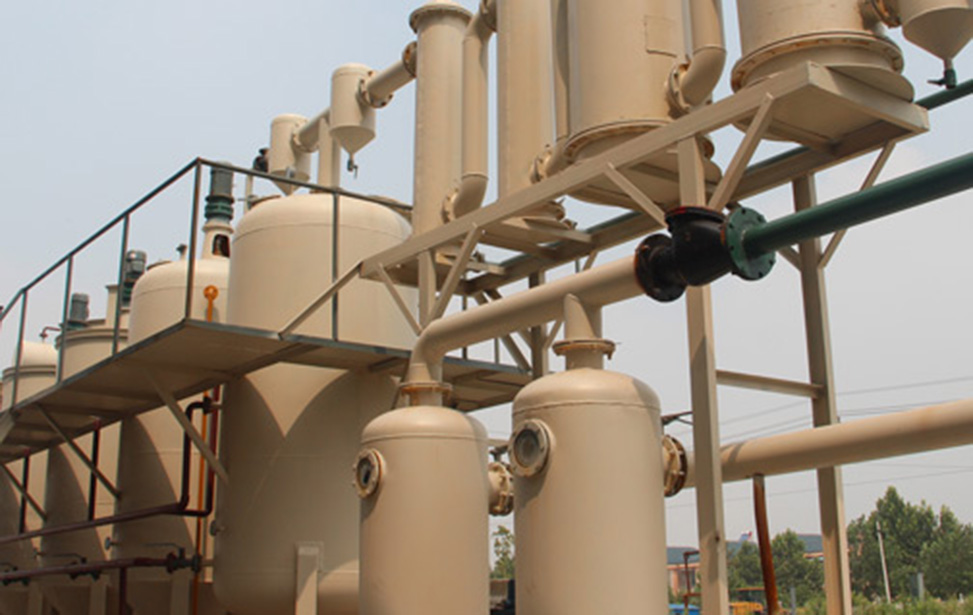

Plastic to oil line cooling systems decides oil output. There are two steps for cooling. Cooling pipe is the first step. The second is condenser. Its inner have 61 pipes in one condenser. The total cooling area is 100㎡. This will guarantee you a high oil yield. The reasonable design has a direct relationship with the oil output.

Technical Data

Technical parameter of automatic convert waste plastic to oil machine
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste plastic	Waste plastic	Waste plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm

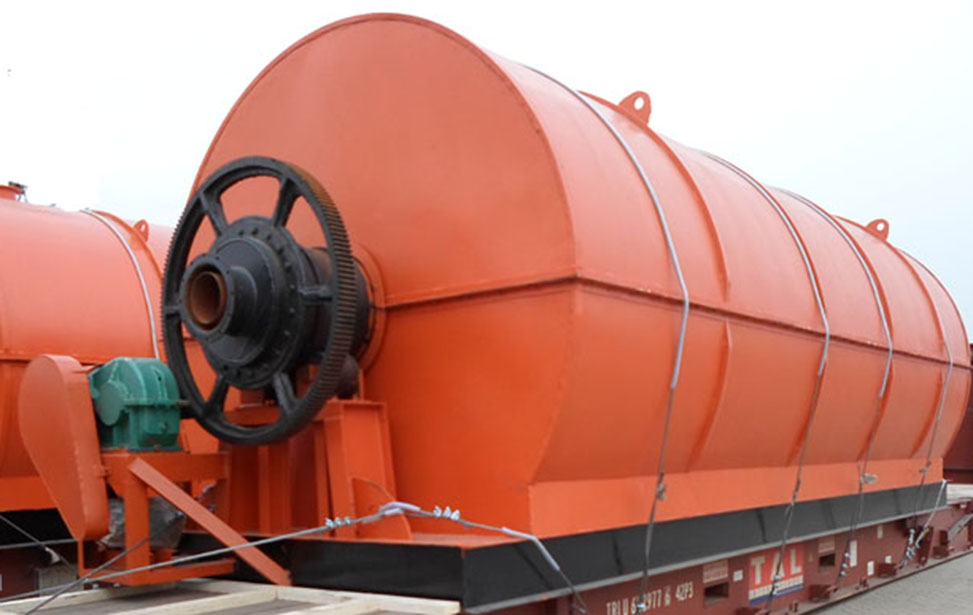

13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about automatic convert waste plastic to oil machine
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Application

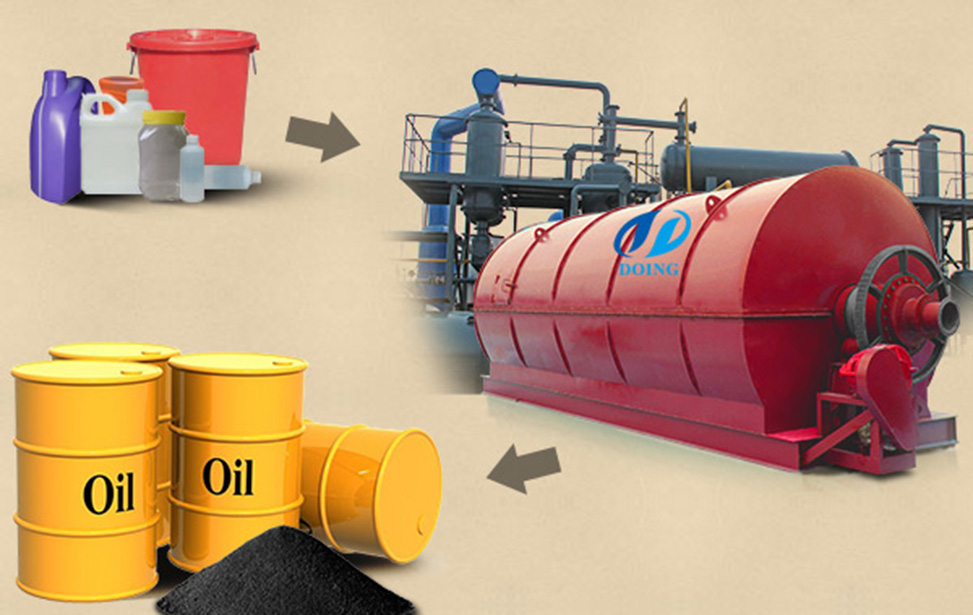

Industrial convert waste plastic to oil machine aims to reduce waste plastic into fuel oil and diesel component and carbon black, and to get high quality fuel oil and carbon black while avoiding any pollution. The process design is reasonable, and the equipment is not only trustworthy but also can bring good environmental, social and economic benefit.

1. The convert waste plastic to oil machine is widely used by recycling center, waste plastic recycling company, and Eco-protect Company.
2. The final product from convert waste plastic to oil machine is fuel oil, diesel, carbon black and steel wire. Fuel oil can be as fuel to heating, such as heavy industries, cement factory, steel milling factory, glass making factory, boiler factory etc. Diesel oil can be used for tractors, trucks, and diesel oil generators. Carbon black can sell to cement factory, also can pellet them to heating the machine.
