With the continuous development of industrial civilization, more and more plastic wastes are widely used in our life, while the phenomenon to discard the waste plastic is serious, which bring huge white pollution to our environment. At the same time, with the world economy development, energy crisis becomes more and more serious. Looking for new energy way has been on the agenda in many countries. Pyrolysis is a recycling technique converting waste plastic into fuels, monomers, or other valuable materials by thermal and catalytic cracking processes. DOING group began to research the pyrolysis technology that converts waste plastic to oil energy technology. After 20 year's continuous innovation, now we are proud to launch the waste plastic recycling pyrolysis plant which could turn plastic to industrial fuel oil with green and mature pyrolysis technology.

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2

Chat Online Leave A Message

Waste plastic pyrolysis machine

The whole waste plastic pyrolysis machine composite by 13 parts, those are reactor ,driving device ,vertical catalytic chamber, vertical condenser, oil and water separator, horizontal condenser ,heavy oil tank ,light oil tank , anti-back fire device, vacuum system , dedusting device, draft fan, chimney.

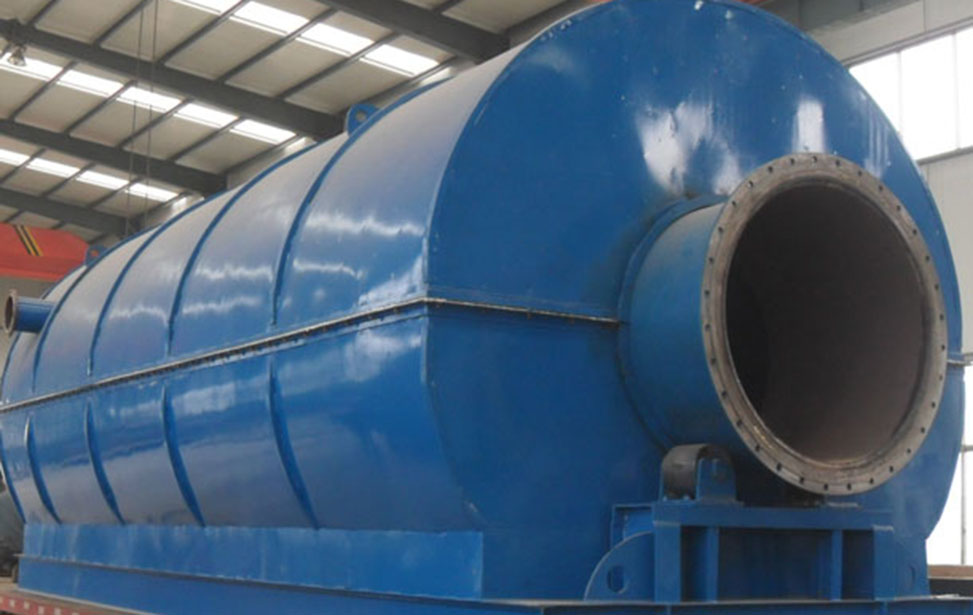

Reactor is one of the most important parts. The material and welding technology of reactor will have a direct impact on safety and durable life. In order to guarantee the quality of reactor, we use auto welder .The welding seam will get X-ray detection and heating treatment.
Condensers adopt water cooling way and the inner cooling tube are made of seamless steel pipe ,the diameter is 48mm.the heat exchanging area is about 13 square meter ,the total heat exchanging area is 40 square meter to get the best temperature for oil gas liquefied.
The main character of waste plastic pyrolysis machine:
Safety:
1. Reactor with auto welding to guarantee the quality of welding seam and avoid cracking
2. Professional heating treatment and x-ray detection chamber for welding seam.
3. Vacuum system to prevent oil gas be back to reactor causing accident.
4. with temperature meter, pressure meter and safety valve.
Environment friendly:
1. Dedusting system to prevent gas and dust from coal burning
2. The exhaust gas will be recycled for heating reactor, no gas pollution
3. Well sealing on every junction parts to prevent gas leak, no smelly
Longer life:
1.use Q245R special steel plate ,thickness 16mm. welding seam with auto welding and will get heating treatment and x-ray detection to extend the life of reactor to the most extend.
2. The life will be 6-8 years
Energy saving:
1. Well sealing for heating system, no gas leak and saving fuel.

Technical Data

Technical parameter of hot sale waste plastic pyrolysis machine
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tyre/plastic	Waste tyre/plastic	Waste tyre/plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about Hot sale waste plastic pyrolysis machine
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Application

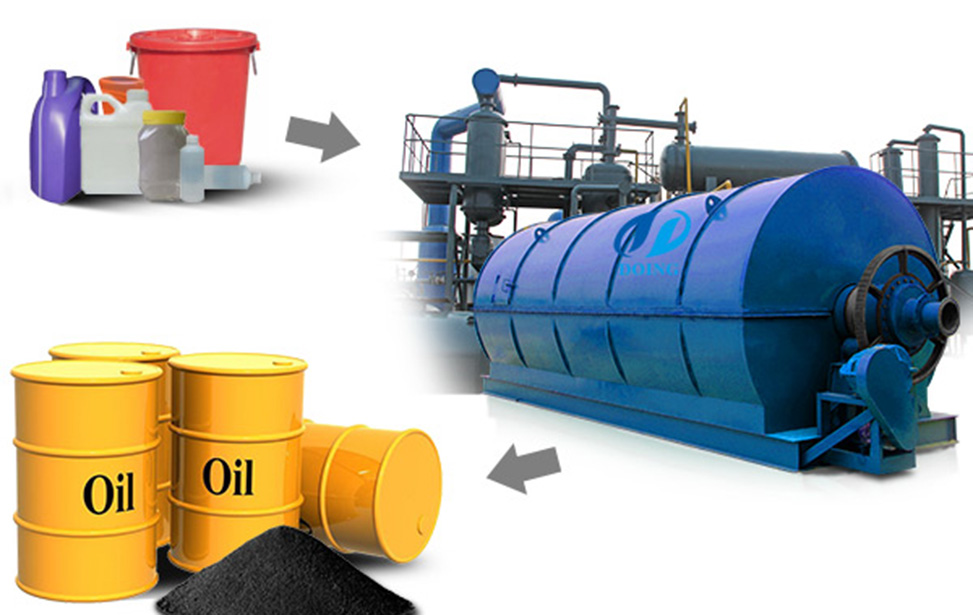

waste plastic pyrolysis machine,convert plastic to oil

Common waste plastic pyrolysis machine oil rate is between 80% to 90%, and common waste tyres oil rate is 45% to 55%. High density cable out of the oil rate can be as high as 70%. It's really profitable business. Why you are still hesitating, what are you waiting for? Come on, join us and build your success! DOING always welcome your visit!
