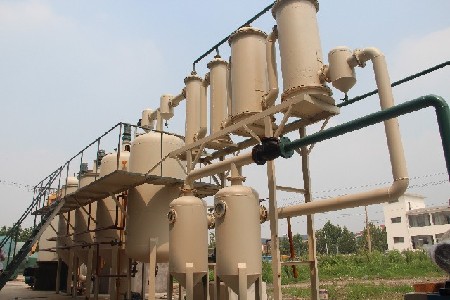

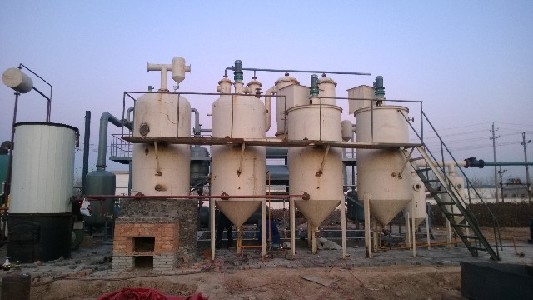

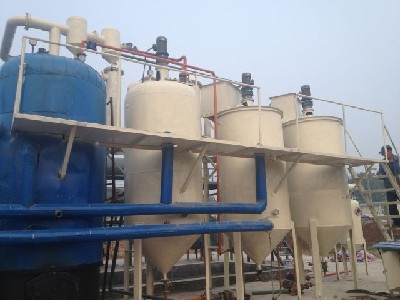

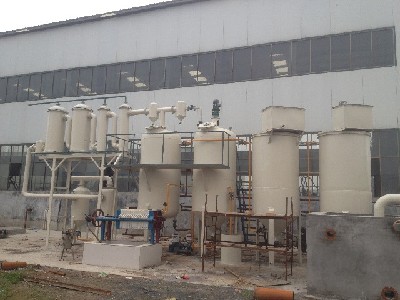

Small waste oil distillation line

Waste oil distillation line is comprehensiveness equipment which is used for tire oil, plastic oil, old oil to distill, purify, fade,anti-oxidate and remove  odor.
Waste oil distillation line Characteristic :
    a>. steel frame construction :
    (1)floor area is small
    (2)beautiful outside
    (3)easy to control
    b> building block design
    (1)convenient transportation
    (2)easy to install and repair
    c>.save energy
    (1)Thermal insulating layer can save energy
    (2)High heat utilization
   d>. Environment-friendly design
    The waste gas from hearth will be renewed, guarantee no polution.

• Technical Data

Waste oil distillation line Technical parameter

    Reactor : Φ1600X3000   design power : 1.5KW
    Catalytic chamber: Φ500X4000
    Cooling system : Φ630X3000
    Oil tank(middle) : Φ800X1800
    Colour and odor removal: Φ800X2200
    Design power : 2.2KW
    Design pressure : 0.51MPa
    Maximum working pressure: 0.4MPa
    Working temperature: 450℃-520℃
    Design capacity: 5.0m³

• Application

Waste oil distillation line is mainly can convert waste engine oil,motor oil,tyre oil,plastic oil to clean diesel, the oil recovery yield is about 85%(according to oil quality).

Waste oil distillation line Safety

1>Decentralized management
    In order to guarantee safety, we design and install pressure gage, thermograph, safety valve on every key position, so workers can control operational aspect at any part at any time.
 2>Centralized control
    Besides, according to customers' need, we can install some high-end sensor alarm, we change mechanical watch into eletronic sensor , which can send every data to the operating floor in time and exactly., so the operating floor can centralized control and save time, if any problems,we can get the information at once. So we can guarantee the safety.
