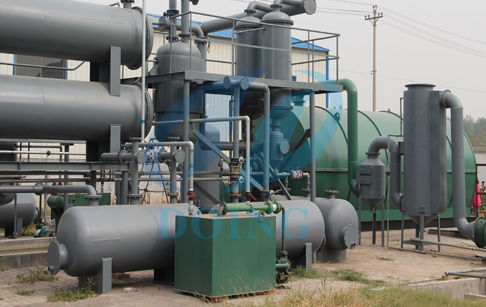

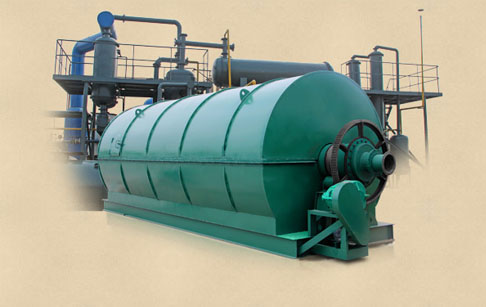

Plastic waste recycling machine
Plastic waste recycling machine
Plastic waste recycling machine
Plastic waste recycling machine

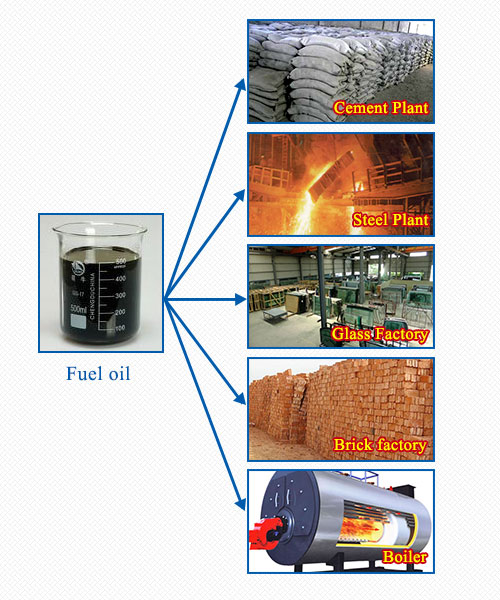

Fuel oil from waste plastic are used in below industries A.power plant factory B.glass factory C.cement factory D.ceramic factory E.aluminum factory F.boiler factory G.central heating factory H.painting factory
Chat Online Leave A Message
| Technical parameter of plastic waste reycling machine | ||||
| No. | Items | Contents | ||
| 1 | Equipment type | DY-1-6 | DY-1-8 | DY-1-10 |
| 2 | Raw material | Waste plastic | Waste plastic | Waste plastic |
| 3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
| 4 | 24-hour Capacity | 6 ton | 8 ton | 10 ton |
| 5 | Oil yield | 2.7-3.3ton | 3.6 -4.4ton | 4.5 -5.5ton |
| 6 | Operating pressure | Normal | Normal | Normal |
| 7 | Material of pyrolysis Reactor | Q245R | Q245R | Q245R |
| 8 | Thickness of pyrolysis Reactor | 16mm | 16mm | 16mm |
| 9 | Rotate speed of pyrolysis Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute |
| 10 | Total power | 19KW | 19KW | 19KW |
| 11 | Mode of cooling | Water cooling | Water cooling | Water cooling |
| 12 | Cooling area of condenser | 100sqm | 100sqm | 100sqm |
| 13 | Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive |
| 14 | Noise dB(A) | ≤85 | ≤85 | ≤85 |
| 15 | Size of Reactor(D×L) | 2200×6000 | 2200×6600 | 2600×6600 |
| 16 | Working form | Intermittent operation | Intermittent operation | Intermittent operation |
| 17 | Delivery time | 20days | 20days | 20days |
| 18 | Weight | 27T | 30T | 35T |
| Prepared by customer about plastic waste recycling machine | |||
| No. | Item | Consumption | |
| 1 | Coal(for choice) | 500kg/day | |
| 2 | Wood(for choice) | 800kg/day | |
| 3 | Natural gas(for choice) | 100-150kg/day | |
| 4 | Oil(for choice) | 300-350kg/day | |
| 5 | Electricity | 244kwh/day | |
| 6 | Water(recycled) | 60㎥ /month | |
| 7 | Total power | 19kw | |
| 8 | Land area | 35m*15m | |
