Pyrolysis Plant

Pyrolysis plant is the hot-sale product in DOING company. Our waste pyrolysis plant can pyrolyze many kinds raw material into fuel oil and carbon black, such as waste plastics, waste tyres, waste rubber, medical waste. It can also extract fuel oil from oil sludge. So pyrolysis plant for waste is also called other names: waste tyre pyrolysis plant, waste plastic pyrolysis plant, oil sludge pyrolysis plant, plastic to oil machine, tyre to oil plant, etc. DOING pyrolysis plant not only has a high oil yield, but also the operation process is safe and environmentally friendly. It has been sold to more than 60 countries and regions.

Processing Capacity: 1T/6T/10T/12T/15T, custom

End Products: Pyrolysis oil, carbon black

Core Components: Pyrolysis reactor, condenser

Certificates: CE, ISO, SGS

Chat Online
Leave Message
View More  →

DOING Pyrolysis Plant for Difffernet Raw Materials

Working Process of Pyrolysis Plant

  • 1. Feeding

    Feed raw materials into the reactor and rotate the reactor clockwise, then seal the inlet door to ensure no gas leakage.

  • 2. Heating

    Heat the pyrolysis reactor slowly with heating materials. When the temperature reaches a certain degrees, the raw material will be pyrolyzed and produce oil gas.

  • 3. Cooling

    Oil gas from the reactor will enter the condensing system, which is cooled down to liquid oil. Then collect liquid oil by the storage tank. Gases that cannot be liquefied under normal pressure will be recovered to the combustion system through a safety device.

  • 4. Slagging

    After the liquid oil is collected, the reactor temperature will decrease. When the temperature drops to about 40 degrees, we can expel carbon black, steel wire or soil.

Technical Parameter of Pyrolysis Plant

No. Items Contents
1 Equipment type DY-1-6 DY-1-10 DY-1-12
2 Raw material Waste tire Waste tire Waste tire
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 10 ton 12 ton
5 Oil yield 2.7-3.3ton 4.5 -5.5ton 4.8 -6.6ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 15KW 15KW 15KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2600×6600 2800×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 32T 35T

Technical Advantages Parts of DOING Pyrolysis Plant

  • 1. Safety

    DOING pyrolysis plant is equipped with mature safety devices, such as thermometers, pressure gauges, safety valves, electronic control systems. These safety devices can monitor the operation of pyrolysis plant at any time, and can ensure the accuracy and safety of operation.

  • 2. Energy saving

    Combustible gas that cannot be liquefied under normal pressure can be recycled and used as fuel to heat the reactor. The reuse of this gas can save fuel costs in the production process of pyrolysis plant.

  • 3. Environmental protection

    All parts of pyrolysis plant sealed well, and will not leak. The flue gas produced in the production process is also treated by the smoke cleaning system(include tail gas cleaning and odor removal system and desulfurization & purification tower) to ensure that the exhaust smoke is pollution-free.

  • 4. High oil yield

    DOING condensing system adopts three-stage condensation, which has better cooling effect and can improve oil yield. In addition, our engineers have extensive experience in equipment operation and can achieve high oil yield by controlling temperature.

After-Sales Service of DOING Pyrolysis Plant

  • 1. Transportation

    As for pyrolysis plant transportation, we will divide the whole pyrolysis plant into parts and load them in containers. Moreover, we have professional freight forwarders who have cooperated with us for many years and have helped us transport many sets of pyrolysis plant.

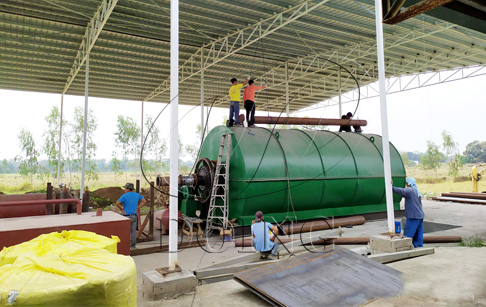

  • 2. Installation
  • As for the after-sales installation of pyrolysis plant, we have many experienced overseas installation engineers. Usually, when the pyrolysis plant arrives in the customer's country, we will send engineers to install, debug and run the pyrolysis plant, and train the customer's workers to operate and run the pyrolysis plant.
  • 3. One year warranty

    In addition, we will also provide one year after-sales warranty service for pyrolysis plant, and provide lifetime technical support for our customers.

Project Case

We are not an agent but a professional pyrolysis plant manufacturer because we have our own factory to produce the pyrolysis plant. Our factory is very professional. In addition, we have a professional design team and e-commerce team. Till now, our products have sold well in more than 60 countries and regions around the world, winning great praise and trust of our customers all over the world!
