Waste plastic oil to diesel oil machine
The waste plastic oil to diesel oil machine is a great progress in the field of plastic recycling. It adopts the latest ...
-
Cell/WhatsApp: +86-135-2669-2320
-
Phone: +86-371-56771821
-
E-mail: market@doingmachinery.com
- Features:
- Technical Data:
- Application:
Generally, we can make plastic oil from plastic waste by the pyrolysis plant. If you want to make more profits, the Waste plastic oil to diesel oil machine can help you. It can effectively remove the particles, colloidal matter, acid and odour from plastic oil by acid-treatment and filtration. Finally you can get diesel oil with clean and transparent color and qualified smell.
Waste plastic oil to diesel oil machineThe advantages of Waste plastic oil to diesel oil machine

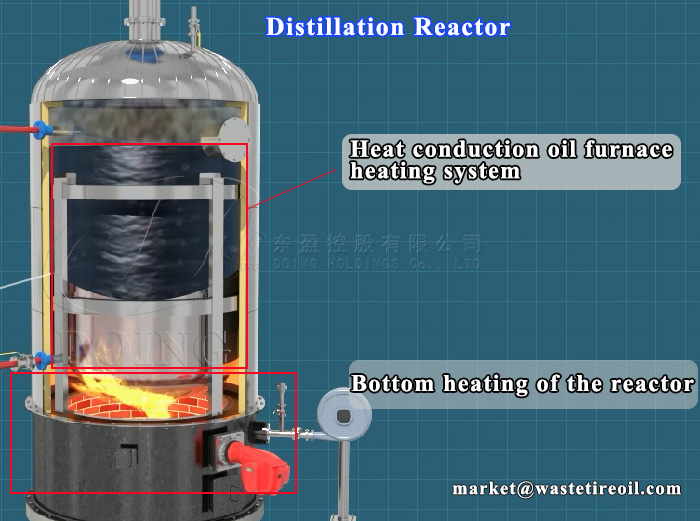

1. Our waste plastic oil to diesel oil machine uses heat-conducting oil circulating heating and direct fuel heating at the same time. This kind of double heating system not only saves heating fuel, but also speeds up the distillation process,thus to save time.
2. Our waste plastic oil to diesel oil machine is equipped with diesel further purification system, which can deeply purify refined diesel oil into light yellow color and high-quality diesel products.
Double heating system
- Features:
- Technical Data:
- Application:
| Technical parameter of waste plastic oil to diesel oil machine | |
| Items | Contents |
| Model | DY-5t, DY-10t, DY-20t, DY-50t… |
| Raw material | motor oil, waste tire crude oil, plastic crude oil |
| Structure form | Vertical (easy cleaning and maintenance) |
| Heating method | Indirect heating to prolong the machine service life |
| Operating pressure | Constant pressure |
| Heating material | Coal, charcoal, fuel gas, fuel oil |
| Average out-put oil rate | 95% |
| Material of reactor | 4 reactor with different material |
| Thickness of reactor | 18mm |
| Mode of cooling | Recycled water cooling |
| Power in total | 20 Kw |
| Service life | average 7 years |
| Land area | 180㎡ |
- Features:
- Technical Data:
- Application:
The application of diesel oil and distillation residues
1. The diesel oil can be used as alternative diesel in diesel combustion engines, generators, heavy machinery and agricultural machinery. If customers want to use this diesel oil in cars, need to mix it with standard diesel.
2. The distillation residues could be used as asphalt for paving,or directly sold to asphalt refineries for further refining.
| Oil yield of different material: | ||
| No. | Name | Oil yield |
| 1 | Waste tire oil | 85%-90% |
| 2 | Waste plastic oil | 95% |
| 3 | Waste engine oil | 85%-90% |
Doing Group waste plastic oil to diesel oil machine has capacity of 100KG -- 14T, if you want to know to more information about waste plastic oil to diesel oil machine, welcome to consult us.
