DOING latest design batch type waste tyre/plastic pyrolysis production line 3D video

This 3D video shows the working process of the latest design batch type pyrolysis pyrolysis plants, which include six waste tire/plastic to fuel oil production lines. A complete batch pyrolysis production line including waste tire feeders, pyrolysis reactor, cooling system, oil tank and exhuast gas cleaning system.

As the video displays, batch pyrolysis plant is a closed pyrolysis reactor where each batch cycle involves separate stages: feeding, pyrolysis reaction, cooling and product collection, slag discharge, and flue gas treatment. Each stage requires a certain amount of time; operators can only begin the next batch after the current batch pyrolysis process is complete.

The workflow of a batch waste tire plastic to oil pyrolysis production line is as follows:

DOING batch pyrolysis plant workflow

1. Feeding Stage: Raw materials (such as waste tires or plastics) are fed directly into the pyrolysis furnace via a hydraulic feeder or after crushing. This stage typically requires no complex pretreatment; the feeding process is automated and takes approximately 2 hours.

2. Pyrolysis Reaction Stage: The pyrolysis furnace is heated in an oxygen-free environment, with the temperature gradually increasing.

3. Cooling and Product Collection: After the reaction, heating is stopped, and the furnace body is cooled by fans. When the temperature drops to around 50°C, carbon black or solid products can be collected. DOING intermittent equipment is equipped with multiple cooling fans for rapid cooling and can be equipped with a patented negative pressure device as needed to promote oil-gas conversion and prevent flash explosions, ensuring greater safety.

4. Slag Removal Stage: After the furnace body cools to 35-45°C, steel wire or residue is discharged through an auger device. Exhaust gas is discharged after dust removal treatment. This stage requires manual operation, and the equipment must be cooled before starting.

5. Exhaust Gas Purification: Non-condensable combustible gases generated during pyrolysis are treated by a purification device and can be used to reheat the reactor, saving energy input costs. Waste generated from heating and combustion can be treated by desulfurization and denitrification devices to meet emission standards.

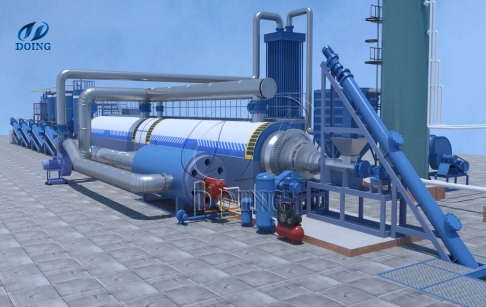

Pyrolysis tire plastic to oil and carbon black production line

Through the working process, batch pyrolysis production line can recycle waste tire/plastic into fuel oil, carbon black and steel wires(only for tires) through thermal pyrolysis technology, achieving waste to energy conversation.

If you have an interest, welcome to contact with us to get more technical details, quotations or real running videos of DOING the latest batch type waste tyre/plastic pyrolysis production line.
