1.5/2.5/5/10TPD, custom
Diesel, gasoline, heavy oil, carbon black
Pyrolysis and distillation reactor, condenser, PLC
CE, ISO, SGS

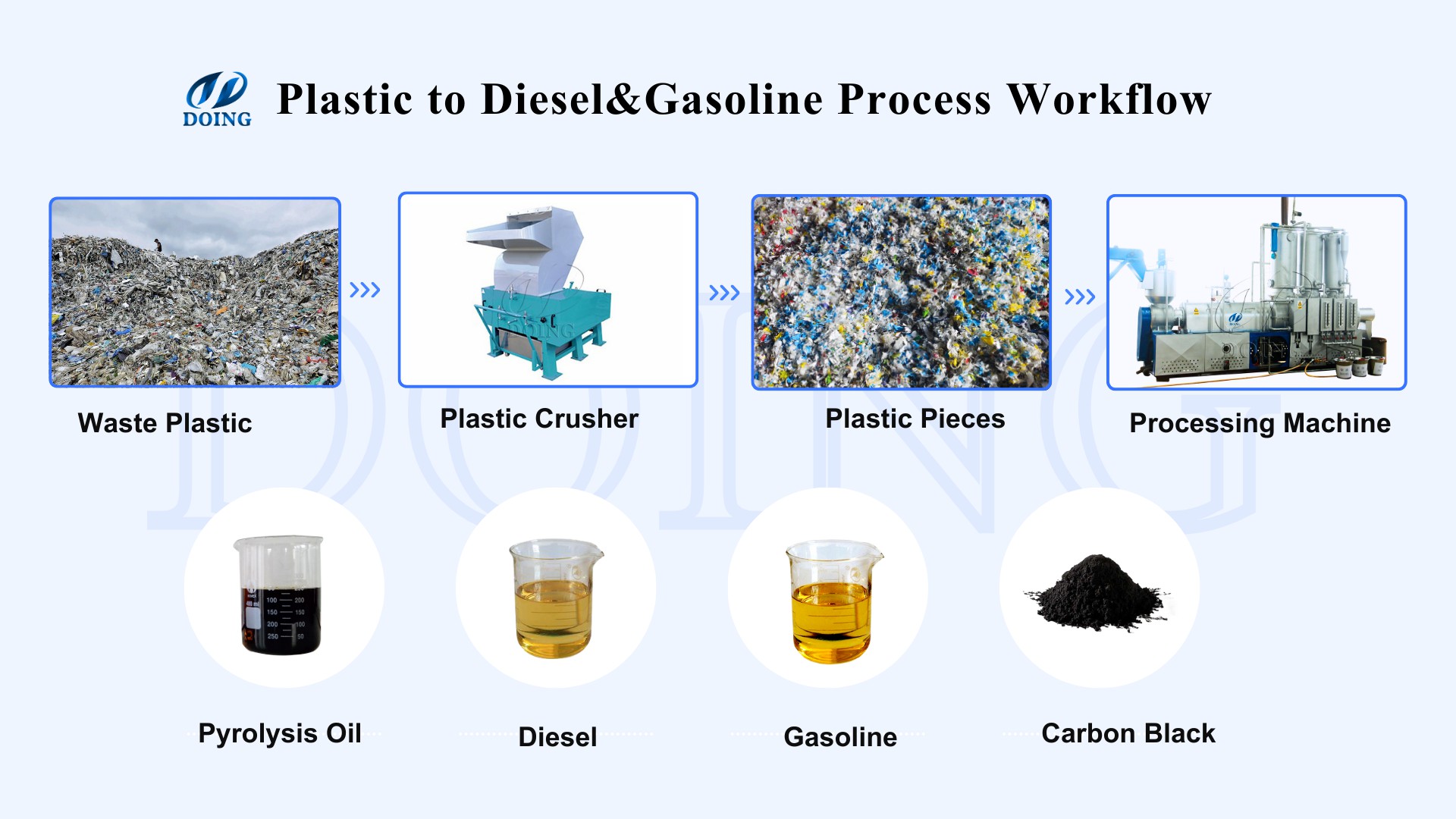

Shredded or crushed the raw material into small pieces less than 3-5cm, then put them into transmission device. Through the transmission device, they are automatically and continuously fed into the waste plastic to diesel and gaoline plant.
The resulting different oil gas, through the action of the cooling system, will be cooled into liquid oil and collected in the oil tank.
The main component of extra gas is methane, which is a non-condensable gas and also a good fuel. We will recycle the syn-gas to the hearth of the heated reactor to assist the heating as fuel. This not only ensures that the exhaust gas does not pollute the air, but also helps the customer to save the heating fuel.
Dioxin is very easy to be produced from many kinds of waste burning process, especially chlorine substance, like mixed plastics, paper-mill waste, household garbage, etc. And the emission of Dioxin will cause serious problems to the environment and human body, thus it need to be seriously disposed and removed before released to the air.
Carbon black will be collected in carbon black tanks through an automatic slag removal system without causing dust in the workshop.
| Item | Content | ||
|---|---|---|---|
| Inputs | Waste plastic(PP/PE/PS/ABS,mixed plastic, etc.) | ||

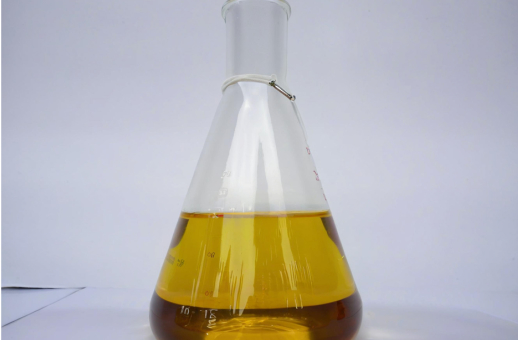

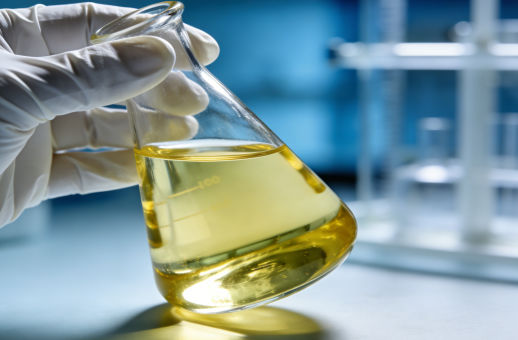

| Outputs | Diesel, gasoline, heavy oil, carbon black, uncondensable gas | ||
| Model | Capacity | Power | Weight |
| 1.5T/D | 15KW | 6T | |
| 2.5T/D | 20KW | 8T | |
| 5T/D | 35KW | 10T | |
| 10T/D | 50KW | 12T | |
| 15T/D | 65KW | 15T | |
| 20T/D | 80KW | 20T | |

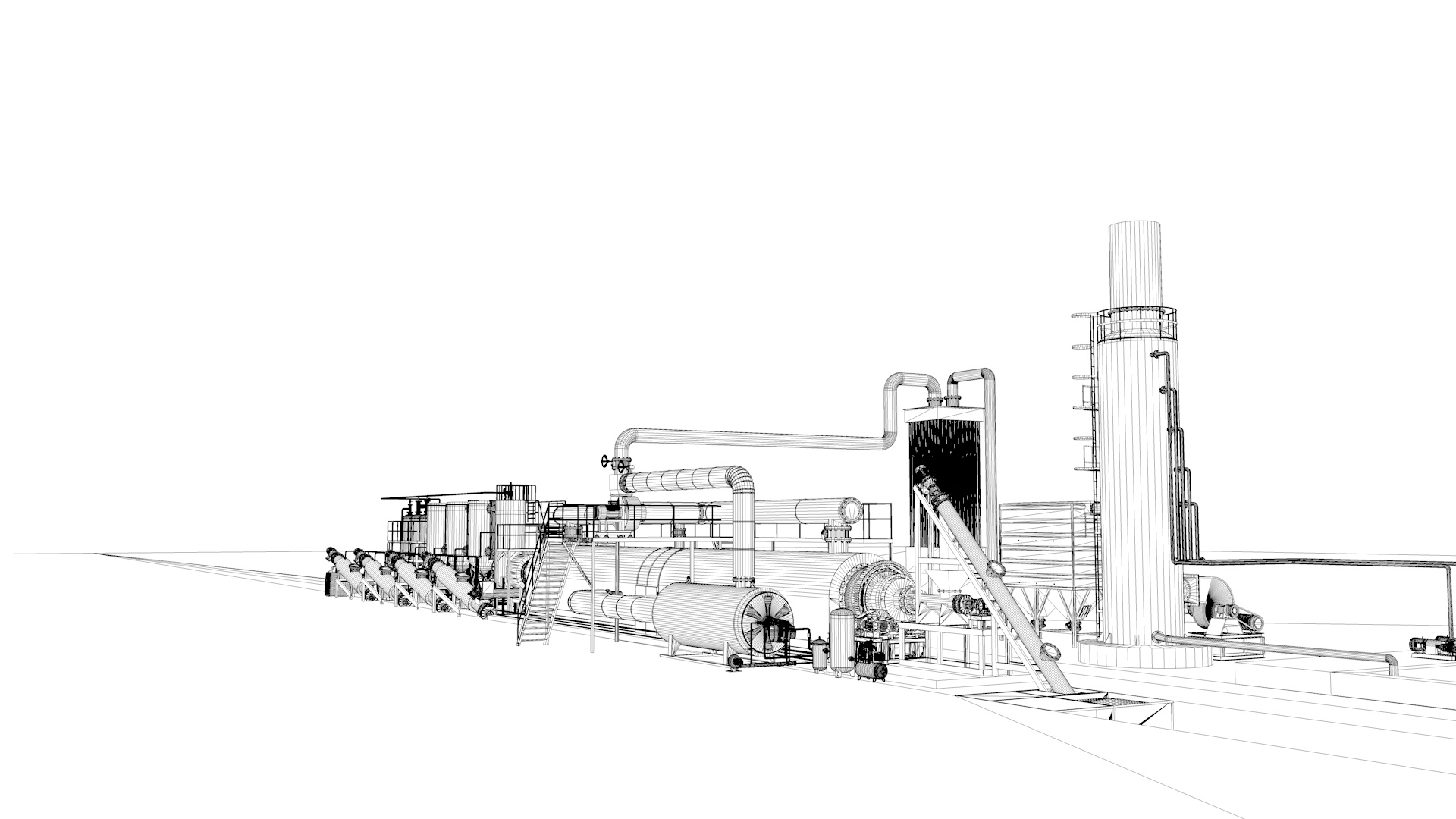

| Machine Type | Continuous machine | ||
| Operation system | Fully automatic PLC control system | ||
| Reactor material | Q345R/Q245R/310S+boiler plate/stainless plate | ||
| Thickness | 12mm/14mm/16mm | ||
| Heating type | Indirect heating | ||
| Heating fuel | Fuel oil, LPG, Natural gas | ||
| Cooling type | Circulating water cooling | ||
| Land occupy size | Take 10T/D machine as an example, it’s about 150 - 200㎡( Width:5-10m, Length:15-20m, Height: 8m) | ||
| Required workers | 1-2 workers per shift | ||
| Remarks | The bigger plant like 30T/D, 50T/D,100T/D could be made according to order. | ||
It can efficiently convert waste to diesel, gasoline and heavy oil in the same time and separately, which possess high-quality and wide uses.
This continuous plastic to diesel and gasoline plant is equipment with smart PLC control system. It is easy to operate and control.
Fully automatic continuous feeding and slagging system, which can keep feeding, heating, discharging and getting oil output every second without stop.
Waste plastic to diesel and gasoline processing plant is fitted with advanced dedusting and odor removal system which can remove Dioxin advance, so that emissions is pollution free.
This plastic to fuel oil conversation machine has the catalysis system, which could adjust the quantity of diesel and gasoline according to customer’s demand.
DOING plastic to diesel and gasoline integrated machine has the extra gas collection system which can save heating fuel.
