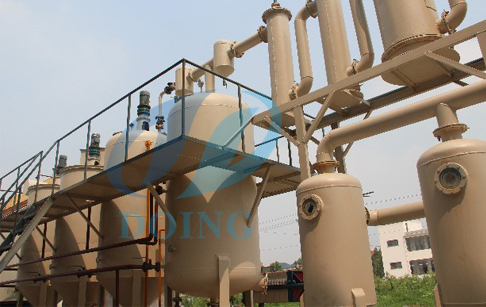

Used oil into diesel fuel refinery

Oil Refining Machine

Used oil into diesel fuel refinery applied for waste engine recycler, waste oil collect center and also used by who have lots of waste tyres and plastic. The final diesel after refining can be used for tractors, trucks, ships and diesel oil generators etc. below is the different waste oil with its oil rate.

Chat Online Leave A Message
waste oil refining machine
 Used oil into diesel fuel refinery

100% safety assurance:
1. Safety devices such as alarming device, pressure gauge, safety valve. If there is some pressure in the reactor, the alarming device will ring and even no workers hear it, it does not matter as we have the reducing pressure device automatically.
2. Vacuum system can ensure the plant running in a safety condition. Make the whole refining processing be on a normal pressure to avoid accident.


Technical parameter of used oil into diesel fuel refinery
Items Contents
Model DY-5t, DY-10t, DY-20t, DY-50t…
Raw material Waste engine oil, waste tire crude oil, plastic crude oil
Structure form Vertical (easy cleaning and maintenance)
Heating method Indirect heating to prolong the machine service life
Operating pressure Constant pressure
Heating material Coal, charcoal, fuel gas, fuel oil
Average out-put oil rate 95%
Material of reactor 4 reactor with different material
Thickness of reactor 18mm
Mode of cooling Recycled water cooling
Power in total 20 Kw
Service life average 7 years
Land area 180㎡

waste oil application
Application of  used oil into diesel fuel refinery

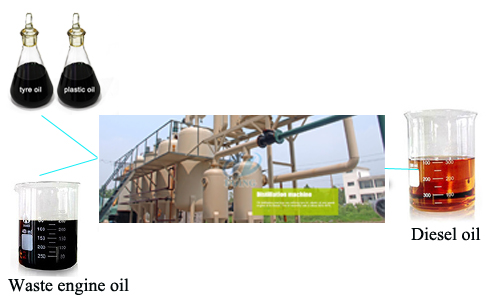

 Used oil into diesel fuel refinery applied for waste engine recycler, waste oil collect center and also used by who have lots of waste tyres and plastic. The final diesel after refining can be used for tractors, trucks, ships and diesel oil generators etc. below is the different waste oil with its oil rate.

Oil yield of different material:
No. Name Oil yield
1 Used oil 85%-90%
2 Waste plastic oil 95%
3 Waste engine oil 85%-90%
