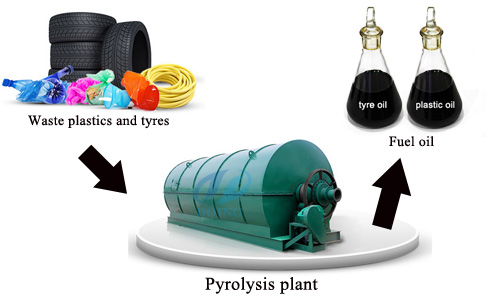

Plastic &tyre to pyrolysis oil plant adopts the latest pyrolysis technology can be convert waste tyre to oil ,carbon black and steel wire .The main advatage of plastic &tyre to pyrolysis oil plant is zero emission ,high efficiency .Plastic &tyre to pyrolysis oil plant not only can solve the problem of waste tyre pollution ,but also can bring substantial benefits for you.

Ms. Bonnie Zhao
+86-371-5677 1821
+86 158 9380 0169
Skype:bonniezhao2
oilmachine@doinggroup.com

Chat Online Leave A Message

Plastic &tyre to pyrolysis oil plant

Plastic&tyre pyrolysis oil plant technical data

Technical parameter of plastic&tyre pyrolysis oil plant
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tyre,waste plastic	Waste tyre,waste plastic	Waste tyre,waste plastic
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about palstic&tyre pyrolysis oil plant
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60㎥ /month
7	Total power	19kw
8	Land area	35m*15m

Plastic &tyre to pyrolysis oil plant working processing and final product application
plastic %tyre pyrolysis oil plant

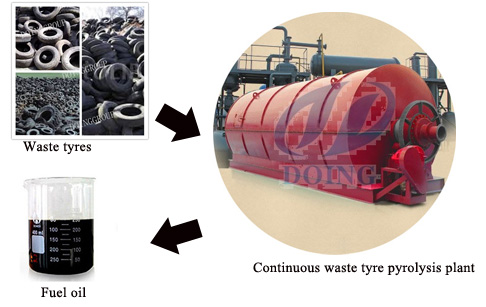

In the waste tyre pyrolysis process, the waste tyres will firstly be put into the reactor.
Secondly, burn the fuel material (coal, wood, oil or natural gas) in the combustion system. The reactor will slowly heat, when the temperature reach around 120℃, it will produce oil gas.
Thirdly, oil gas will be processed and then go to cooling system to cold liquid oil. The gas which can not be liquid under normal pressure will go back to combustion system to replace the fuel material to burn the reactor.
Fourthly, after finished oil production, the temperature of reactor will be down and the carbon black will be discharged automatically. When the temperature fall to 100℃, workers could open the door of the reactor to discharge the rest steel wire.
Lastly, the released gas can achieve national emission standard through the dedusting system。

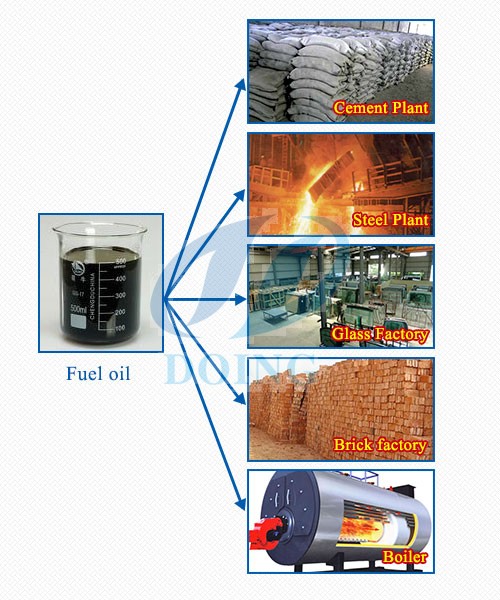

After the whole pyrolysis process of tyres is completed, the final products such as tyre oil, carbon black and steel wire can be sold directly or further processed into new products. Anyway, you will benefit a lot from them.
