Waste plastic continuous pyrolysis plants
Waste plastic continuous pyrolysis plants
Waste plastic continuous pyrolysis plants
Waste plastic continuous pyrolysis plants

Waste plastic continuous pyrolysis plants

Waste plasitc continuous pyrolysis plants of Doing is to tranform waste tyre or waste plastic into fuel and energy .The r...

Get Price
Online Chat
plastic pyrolysis plant

Waste plastic
With the rapid development of the world plastic industry, more and more plastic materials are used widely than before. As the increasing quantity application of plastic, it brings people convenience as well as serious pollution problems. At present, the waste plastics mainly are solved by landfill, burning and recycling. However, both of landfill and burning cause the secondary pollution, and the scope plastic recycling is very limited. For example, the waste plastics produced by household garbage and paper-making factory, which can not be recycled. With the increasing price of International crude oil, the Waste plastic continuous pyrolysis plants  project report is closely watched by different countries in the world.


pyrolysis plant

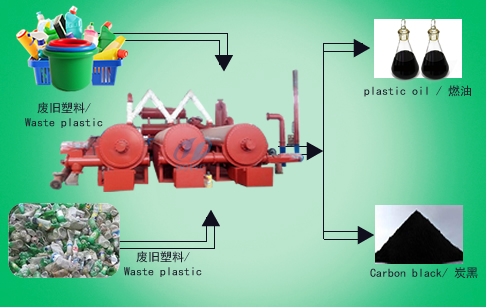

Waste plastic continuous pyrolysis plant
To solve the problem of used tyres waste plastic and waste rubber in a green way, instead of landfill or burning.
With many years exploring and conquering ,Henan Doing productiong waste plastic continuous pyrolysis plants  is feeding in every second and minute,automatic ejecting wastes residue,fuel product day and night.

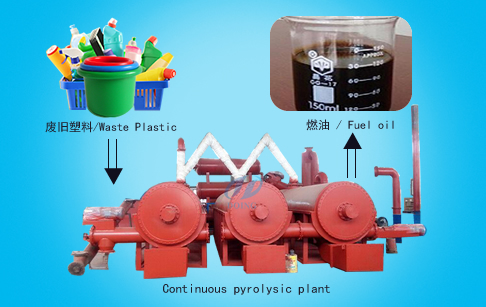

continuous pyrolysis plant

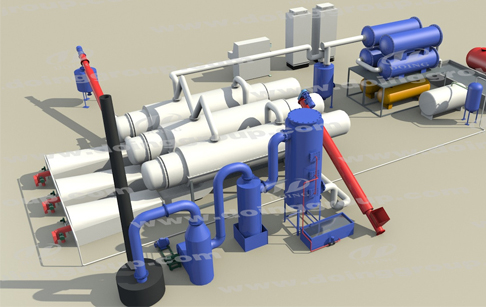

3D picture of waste plastic continuous pyrolysis plants

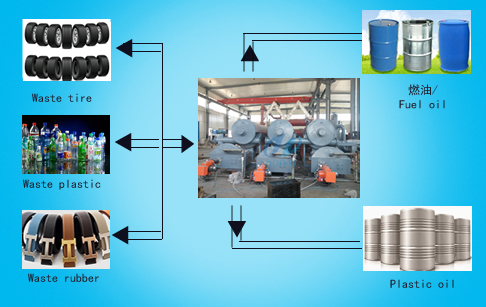

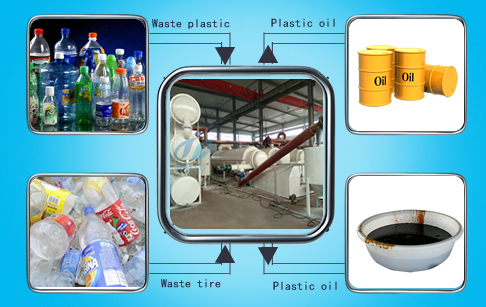

Waste plasitc continuous pyrolysis plants of Doing is to tranform waste tyre or waste plastic into fuel and energy .The raw material of waste plastic continuous pyrolysis plants is waste tyre ,waste plastics,waste rubber .
The technical data of waste plastic continuous pyrolysis plants

No. Item Specifications
1 Model DY-C-10 DY-C-20 DY-C-30 DY-C-50 DY-C-60 DY-C-80 DY-C-100
2 Cpacity 10T/D 20T/D 30T/D 50T/D 60T/D 80T/D 100T/D
3 Power 35Kw 50Kw 65Kw 80Kw 90Kw 105Kw 120Kw
4 Working type Continuous
5 Reactor deisgn Mutiple reactors (The quantity and size depends on the raw material condition)
6 Rotating Internal rotating
7 Cooling system Recycled waster cooling
8 Reactor material Q245R/Q345R boiler plate
9 Heating method Indireact hot air heating
10 Heating fuel Fuel oil/gas
11 Feedstock Waste tire/plastic/rubber
12 Output Fuel oil, carbon black

 The final product  application of waste plastic continuous pyrolysis plants

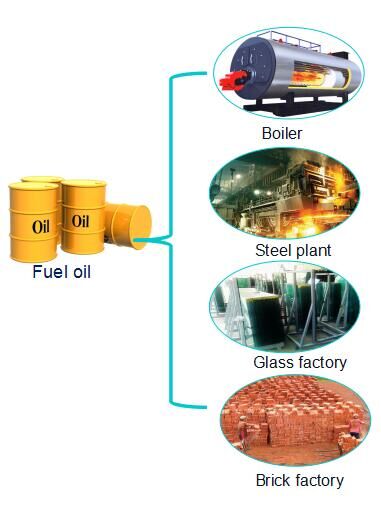

1.Fuel oil (45%-52%): Oil from waste plastic continuous pyrolysis plants can be used as industrial fuel for burning.
pyrolysis plant
Fuel oil application

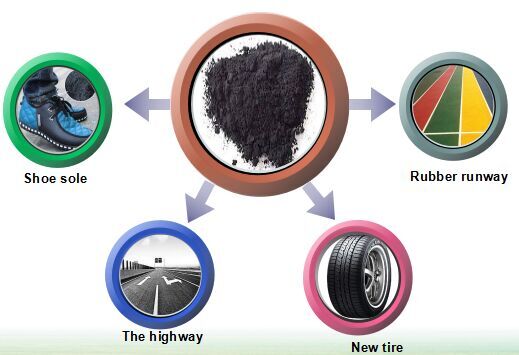

2. Carbon black (30%): First, Carbon black from waste plastic continuous pyrolysis plants . You can sell it to the brick factory as internal combustion or to the factory which need it as raw materials, such as shoe, tire, cable and sealant companies. Second, could make further process, make carbon black powder into carbon black briquette, and use it for burning.
continuous pyrolysis plant
Carbon black application
The oil yield of waste plastic

PE/ldpe/hdpe    50%-75%
PP    50%-75%
PS    50%-75%
ABS    40%
Leftovers of paper    Wet 15-20%, dry 60%
House garbage    35-50%
Plastic cable    80%
Plastic bag    50%
Submarine cable    75%
Rubber cable    35%
Sole    35%
PVC    Not suitable
PET    Not suitable
