How does the continuous waste tyre pyrolysis plant work?

The clients of continuous waste tire pyrolysis plant often encounter the following questions: How much is the plant? What is the material of the plant? How does the plant work? Here, we will focus on the issue of how the continuous waste tire pyrolysis plant works.

Just like the batch waste tire pyrolysis plant, continuous waste tire pyrolysis plant adopts the pyrolysis technology to convert waste tires into pyrolysis oil, carbon black, uncondensable gas and steel wire. Next is the operation process of continuous waste tire pyrolysis plant.

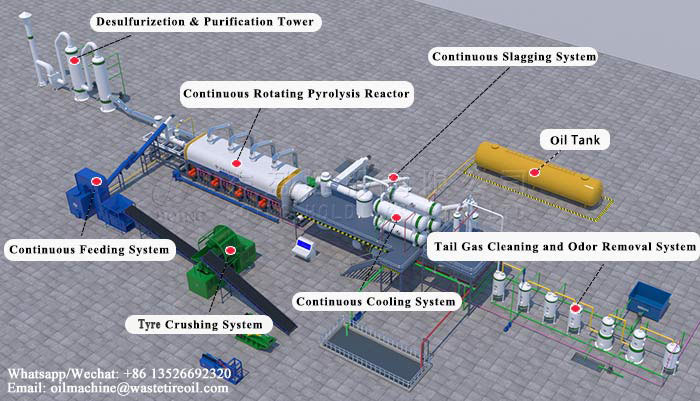

continuous waste tyre pyrolysis plantThe operation process of continuous waste tire pyrolysis plant

First, use the wire drawing machine to take out the tire wire, this step is to prepare for shredding the tires;

Second, put tires without hard steel wire into tire shredder to obtain small piece of tires, shredded tires are easy to pyrolyze;

Third, send the shredded tires into pyrolysis reactor through closed continuous feeder and heat the reactor with fuel. This step can realize automatic feeding, thus reduce labor cost and investment.

Four, when the pyrolysis reactor is heated to a certain temperature, oil gas will generate, then oil gas goes through three-step cooling system, including vertical condenser,horizontal condenser and cooling tower, to be cooled down to get oil and enter oil tanks;

Five, the non-condensable gas coming out of the cooling tower can be recycled to heat the reactor after being treated by tail gas cleaning and odor removal system;

Six, smoke will be generated during the burning of fuel, which can be discharged after being treated by the smoke cleaning system;

Seven, at last, the carbon black in the pyrolysis reactor can be collected by the carbon screw conveyor;

The above is the textual description of the operation of continuous waste tire pyrolysis plant, besides, Doing Group also provides 3D animation operation process video, customer plant workflow video and factory prototype workflow video. If you have any questions or needs, you can contact us at any time, our engineers will give you the suitable answers. Welcome to consult.
